Description
Shingle solar cells are solar cells which are cut into typically 5 or 6 strips. These strips can be overlaid, like shingles on a roof, to form the electrical connections. The strips of solar cells are joined together using an electrically conductive adhesive (ECA) that allows for conductivity and flexibility. Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency.
*Note: Lynsa Solar 2021 catalogue is also available to download here.
Parameters of Shingled foldable solar panels
Model |
Rated Power (W) |
Open-Circuit Voltage (V) |
Max. Voltage (V) |
Short-Circuit Current (A) |
Max. Current (A)
|
Unfolded
Dimension
(mm)
|

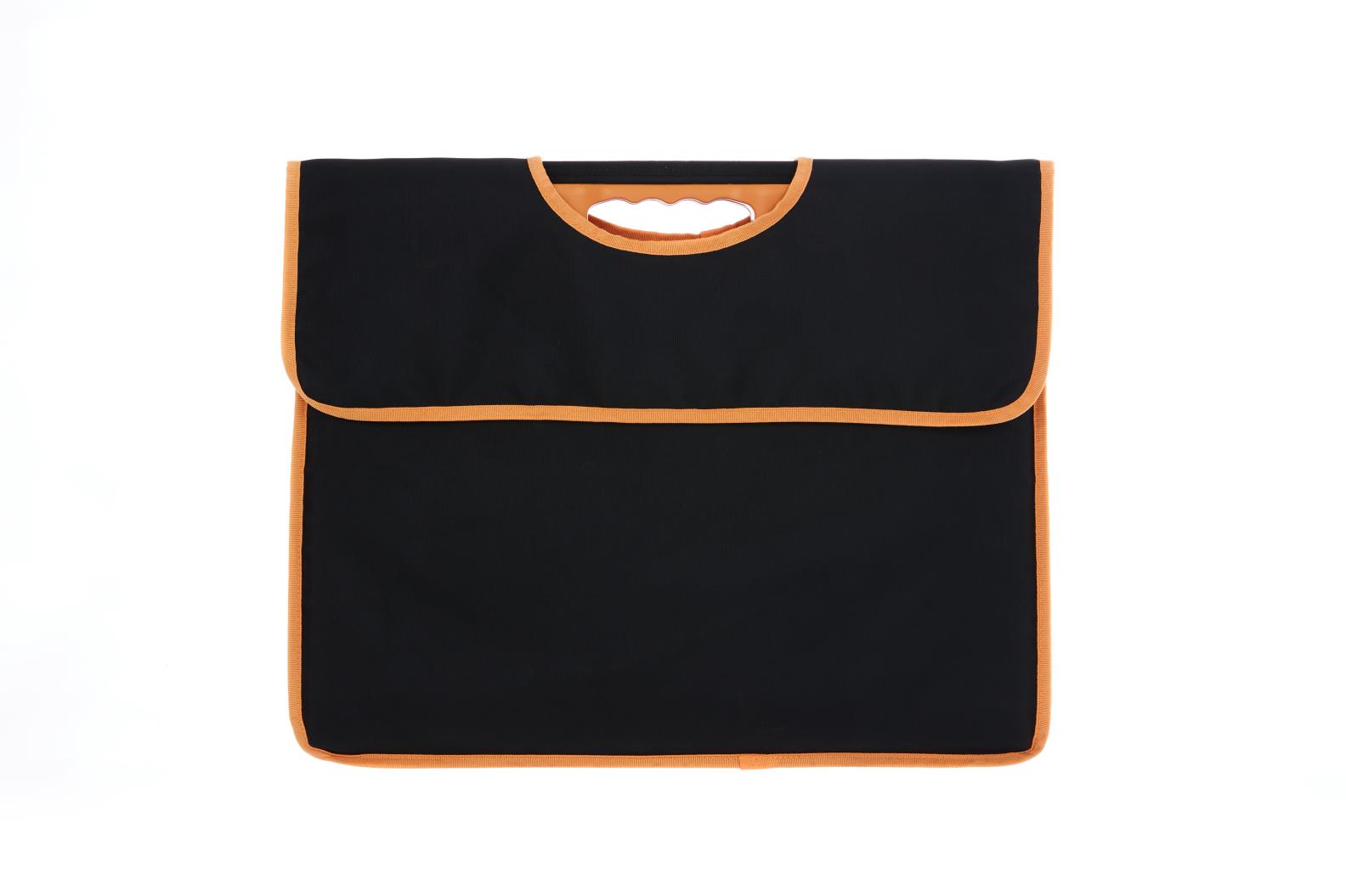

Folded Dimension
(mm)
|
Weight (KG)
|
Output
|
Surface Material
|
Operating Temp (℃)
|
MP-60ZS |
60 |
24.7 |
20.9 |
3.38 |
2.87 |
800*530*3 |
440*530*40 |
1.9 |
USB2.0, USB3.0, 5.5*2.1mm |
PET/ETFE |
-40°C ~80°C |
MP-80ZS |
80 |
20.8 |
17.6 |
5.06 |
4.55 |
1080*525*3 |
540*525*40 |
4.0 |
|||
MP-100ZS |
100 |
22.1 |
18.7 |
5.86 |
5.35 |
1210*565*3 |
605*565*40 |
4.4 |
|||
MP-60ZS-S |
60 |
24.7 |
20.9 |
3.38 |
2.87 |
880*500*3 |
440*530*50 |
2.5 |
Type-C, USB2.0, USB3.0, XT60, DC 5.5*2.1mm |
||
MP-80ZS-S |
80 |
20.8 |
17.6 |
5.06 |
4.55 |
1080*525*3 |
540*525*50 |
4.0 |
|||
MP-100ZS-S |
100 |
22.1 |
18.7 |
5.86 |
5.35 |
1210*565*3 |
605*565*50 |
4.4 |
Type-C, USB2.0, USB3.0, XT60, DC 5.5*2.1mm |
PET/ETFE |
-40°C ~80°C |
MP-120ZS-S |
120 |
24.7 |
20.9 |
6.25 |
5.74 |
1600*530*3 |
440*535*50 |
5 |
|||
MP-160ZS-S |
160 |
20.8 |
17.6 |
9.61 |
9.09 |
2000*525*50 |
535*525*50 |
6.7 |
|||
MP-200ZS-S |
200 |
22.1 |
18.7 |
11.21 |
10.7 |
2260*565*3 |
605*565*50 |
7.8 |
|||
MP-300ZS-S |
300 |
23.4 |
19.8 |
15.67 |
15.15 |
2940*595*3 |
770*595*50 |
10.1 |
Output port:
1. USB 2. USB-3.0 3. TYPE-C 4. DC 5.XT60

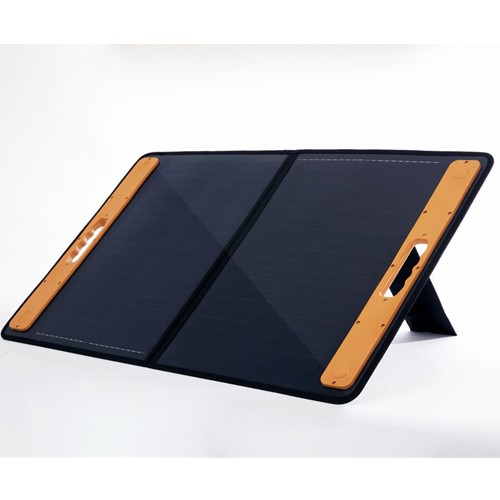

With attached stands to hold the panel at the right angle towards the sunlight, to capture the highest solar energy; two stands are adjustable for the foldable panel to different ground situation.
Application
1. Suitable for electrical devices, such as Phone, Camera, Bluetooth headset.
2. Suitable for various outdoor activites: camping, picnicing, hiking and travelling etc..
*Brought to you by Xiamen Lynsa Intelligent Technology Co., Ltd.
